To Start a Tuning Link Session

1To start an Automatic Tuning Link Session:

1aConnect the CAN cable from the fuel controller to the DynoWare RT.

1bConnect to a DynoWare RT Main Module. Refer to Get Connected.

1cVerify the dyno Air Fuel Ratio (AFR) Module is connected to the DynoWare RT and at least one sensor is connected. If you are using a Wideband2, verify the Windeband2 is online and connected to the CAN network.

1dFrom the Application Launcher, select C3 Tuning Software.

Note:Verify you close all open tables in the C3 Editor.

1eFrom the Home ribbon, click the Tuning Link button.

1fUsing the drop-down arrow, select the Map Position you wish to tune.

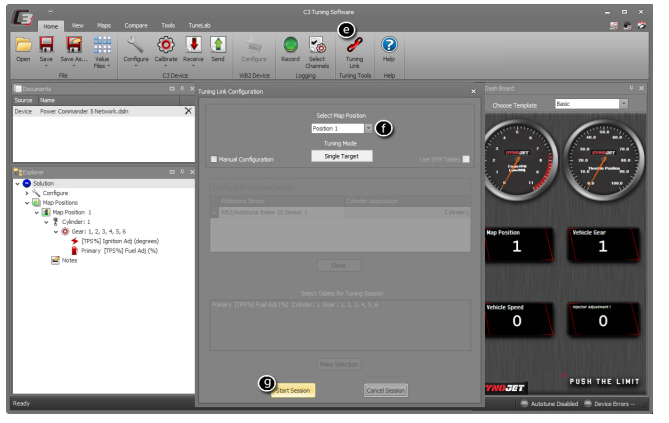

Tuning Link references the Wideband configuration inside the fuel controller to automatically set up a traditional tuning session as shown.

You can tune all cylinders with one O2 sensor or you can tune a combination of cylinders on each O2 sensor with separate sensors.

The example below shows a four cylinder vehicle and one O2 sensor.

1gClick Start Session.

2To start a Manual Tuning Link Session:

2aConnect the CAN cable from the fuel controller to the DynoWare RT.

2bConnect to a DynoWare RT Main Module. Refer to Get Connected.

2cVerify the Air Fuel Ratio (AFR) Module or Wideband2 is connected to the DynoWare RT and at least one sensor is connected.

2dFrom the Application Launcher, select C3 Tuning Software.

Note:Verify you close all open tables in the C3 Editor.

2eFrom the Home ribbon, click the Tuning Link button.

2fUsing the drop-down arrow, select the Map Position you wish to tune.

2gSelect the Manual Configuration box.

2hRight-click the Cylinder Association and select which cylinders correspond with which sensor. The total cylinder count must equal the number of cylinders the vehicle has.

You can tune all cylinders with one O2 sensor or you can tune a combination of cylinders on each O2 sensor with separate sensors.

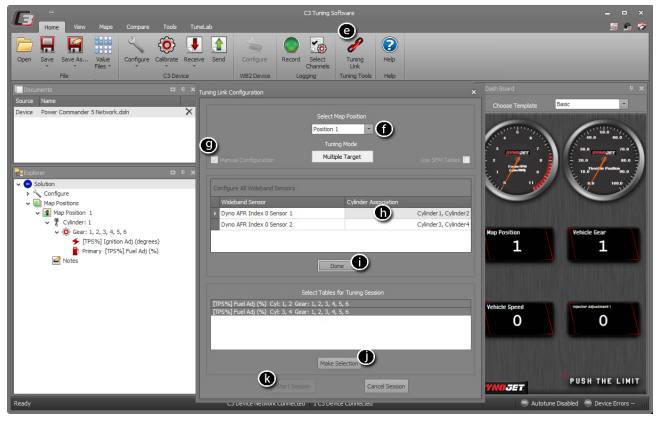

The example below shows a four cylinder vehicle with cylinder 1 and 2 referenced to the first O2 sensor and cylinder 3 and 4 referenced to the second O2 sensor.

2iClick Done.

2jClick Make Selection to choose which individual tables will be tuned.

2kClick Start Session.
